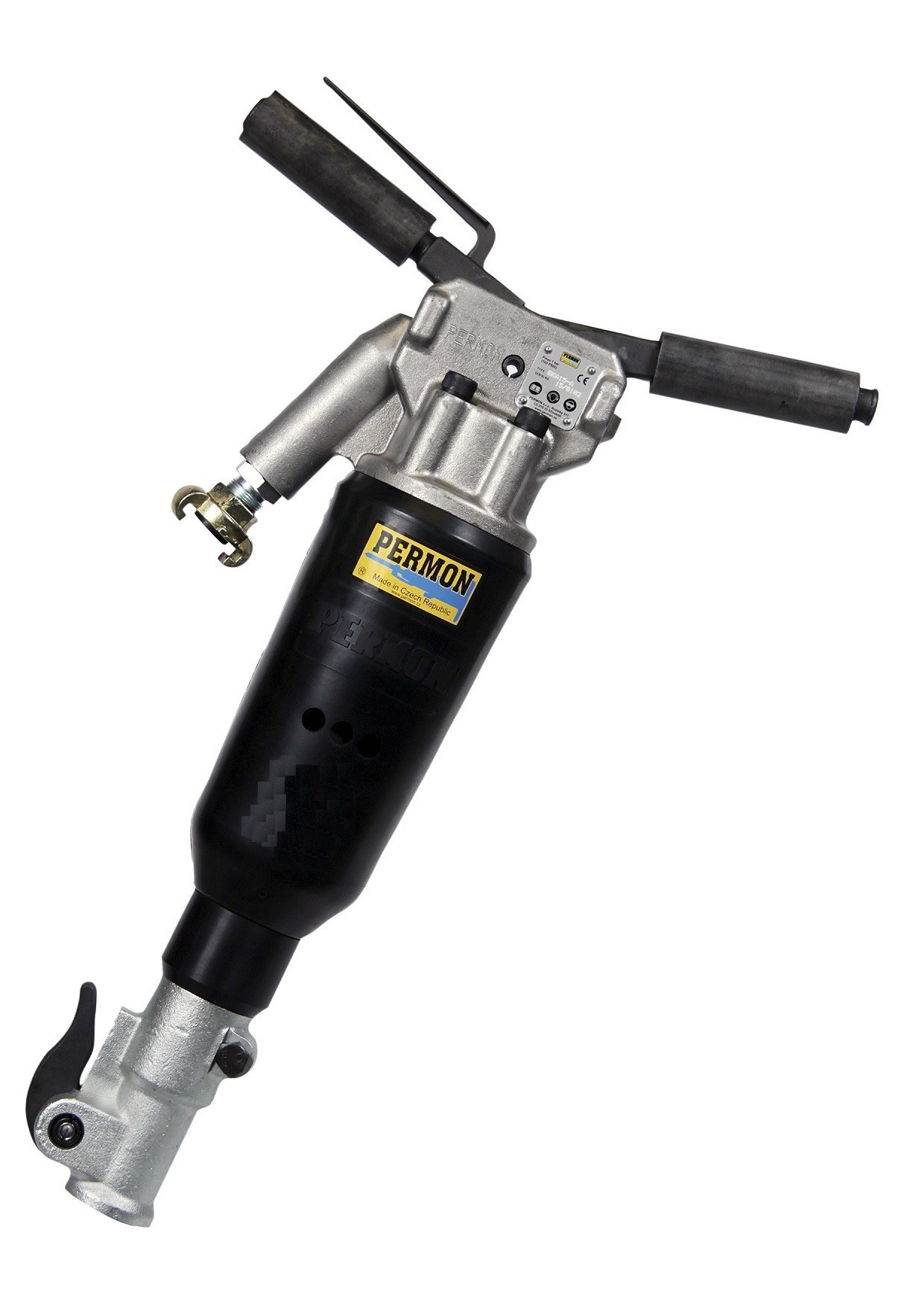

BKA 15-A (#25x108)

The breaking hammer is a versatile tool. It is designed for breaking up low to medium strength rock and material (concrete, bituminous roadways, masonry etc.). Its design and weight favors its use in downwards-horizontal or sloping direction.

Benefits of use

  • HIGH RATIO PERFORMANCE/WEIGHT ENABLE LOWER PHYSICAL WORK FOR THE OPERATORS
  • LONG LASTING RESISTANCE OF MATERIALS
  • SIMPLE CONSTRUCTION ENABLES EASY MAINTENANCE AND REPAIR WORKS
  • PISTON WITH AIR CUSHION
  • HIGH IMPACT ENERGY
  • HIGH SERVICE LIFE AND RELIABILITY
  • LARGE SELECTION OF TOOLS AND ACCESSORIES

Specifications

Weight Impact energy Impact frequency Air consumption Oper. air pressure
16 kg 52 J 19 Hz 0,9 m3min-1 0,4 – 0,7 MPa
Effective value of weighted acceleration Measured sound power level Guaranteed noise level LWA Length x Width Air supply hose
4,1 m.s-2 101,9 dB 103 dB 683 x 441 mm Js 13, 16, 20
Connecting thread Tool shank size Ordering code
G 3/4'' Quick Coupling #25x108 (1x4 ¼”) 9460-261
