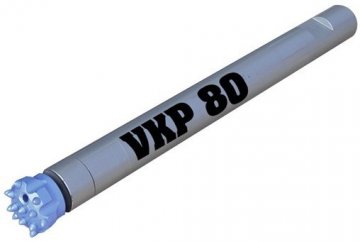

VKP80

VKP Down-The-Hole hammer is designed for drilling deep holes in low to high strength materials, particularly for blasting operations in quarries. Maximum depth of a borehole is determined by the potential of the drilling rig and, critically, the ability to flush out bore dust which changes with the material drilled, diameter of the hole, operating air pressure and drill bit used. The hammer can drill in saturated borehole environments as well as completely underwater. With foam or water flushing, the hammer may also be used in enclosed areas like underground mines.

Benefits of use

  • The hammer can drill in saturated borehole environments as well as completely underwater.
  • With foam or water flushing, the hammer may also be used in enclosed areas like underground mines.

Specifications

Weight Air consumption 0,6 MPa Air consumption 1,2 MPa Air consumption 1,8 MPa Impact frequency 0,6MPa
15.4 kg 2,1 m3min-1 4,6 m3min-1 9,3 m3min-1 27 Hz
Impact frequency 1,2MPa Impact frequency 1,8MPa Oper. air pressure Hammer Outside Diameter Length
37 Hz 50 Hz 0,6 - 1,8 MPa 72 mm 716 mm
Backhead Spanner Flat Size Drill Bit Shank Type Bore Hole Diameter Piston Weight Connecting thread (inner)
50 mm PERMON80 80 - 90 mm 3.58 kg Rd 50 Female
Ordering code
9550-180

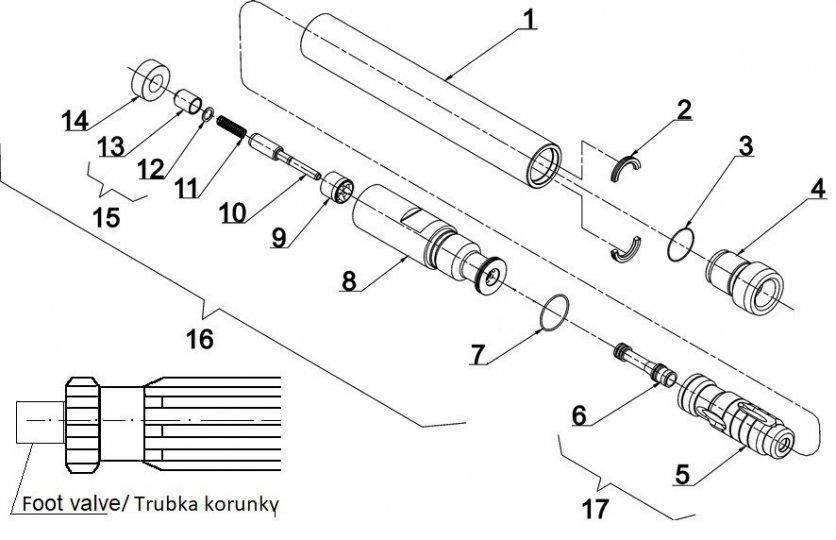

Spare Parts List

VKP80
722 076 Foot valve
