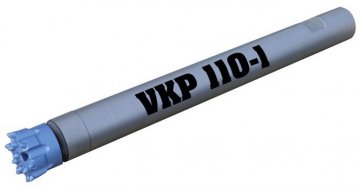

VKP110-1 DHD340A

VKP Down-The-Hole hammer is designed for drilling deep holes in low to high strength materials, particularly for blasting operations in quarries. Maximum depth of a borehole is determined by the potential of the drilling rig and, critically, the ability to flush out bore dust which changes with the material drilled, diameter of the hole, operating air pressure and drill bit used. The hammer can drill in saturated borehole environments as well as completely underwater. With foam or water flushing, the hammer may also be used in enclosed areas like underground mines

Benefits of use

  • The hammer can drill in saturated borehole environments as well as completely underwater.

Specifications

Weight Air consumption 0,6 MPa Air consumption 1,2 MPa Impact frequency 0,6MPa Impact frequency 1,2MPa
34.2 kg 3,5 m3min-1 8,1 m3min-1 19 Hz 26 Hz
Oper. air pressure Hammer Outside Diameter Length Backhead Spanner Flat Size Drill Bit Shank Type
0,6 - 1,8 MPa 97 mm 916 mm 65 mm DHD 340A
Bore Hole Diameter Piston Weight Wear Sleeve Discard Limit Connecting thread (inner) Ordering code
110 – 135 mm 8.3 kg 94 2 3/8” A.P.I Reg box 9550-241
VKP110-1 DHD340A
