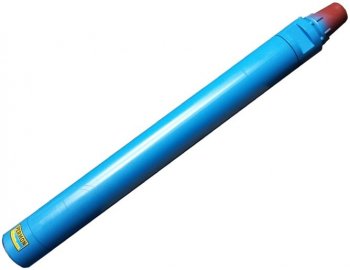

VKP 5W DHD350R - 25 Bar

VKP Down-The-Hole hammer is designed for drilling deep holes in low to high strength materials, particularly for blasting operations in quarries. Maximum depth of a borehole is determined by the potential of the drilling rig and, critically, the ability to flush out bore dust which changes with the material drilled, diameter of the hole, operating air pressure and drill bit used. The hammer can drill in saturated borehole environments as well as completely underwater. With foam or water flushing, the hammer may also be used in enclosed areas like underground mines

Benefits of use

  • The hammer can drill in saturated borehole environments as well as completely underwater.

Specifications

Weight Air consumption 1,2 MPa Air consumption 2,4 MPa Air consumption 1,8 MPa Oper. air pressure
72 kg 11,5 m3min-1 24,1 m3min-1 17,8 m3min-1 1,0 - 2,5 MPa
Hammer Outside Diameter Length Drill Bit Shank Type Bore Hole Diameter Piston Weight
125 mm 1170 mm DHD 350R 135 – 155 mm 17.6 kg
Wear Sleeve Discard Limit Connecting thread (inner) Ordering code
113 3 1/2” A.P.I Reg Pin 9550-390
